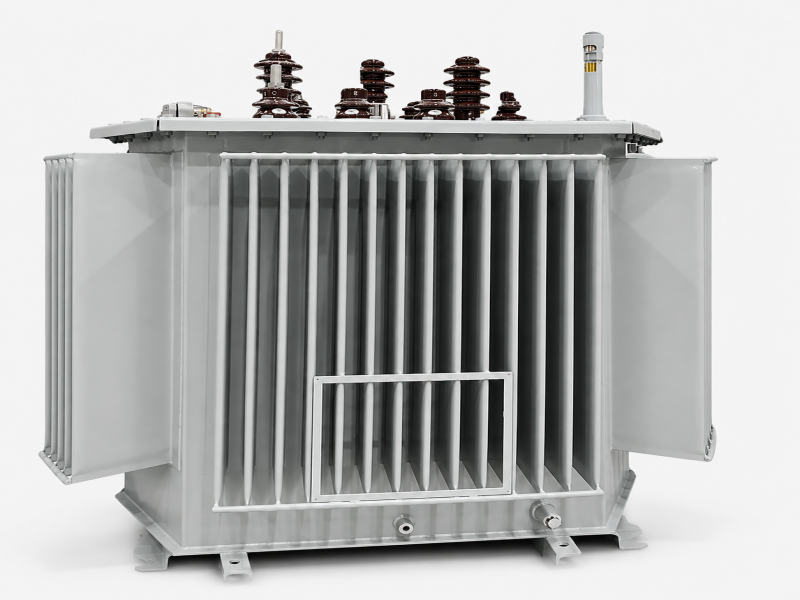

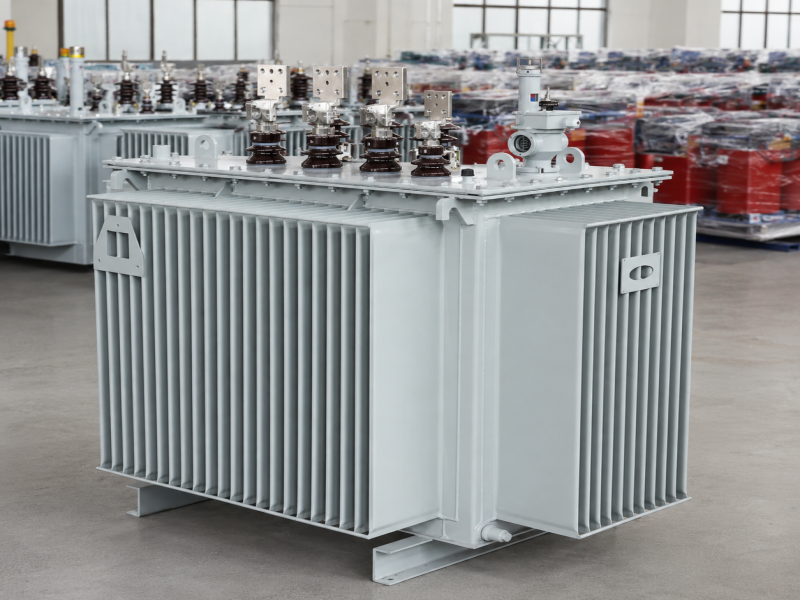

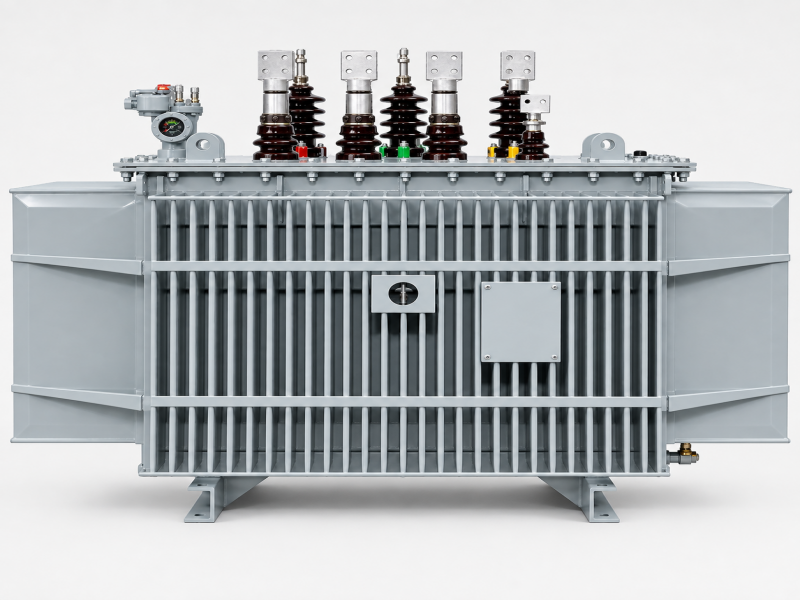

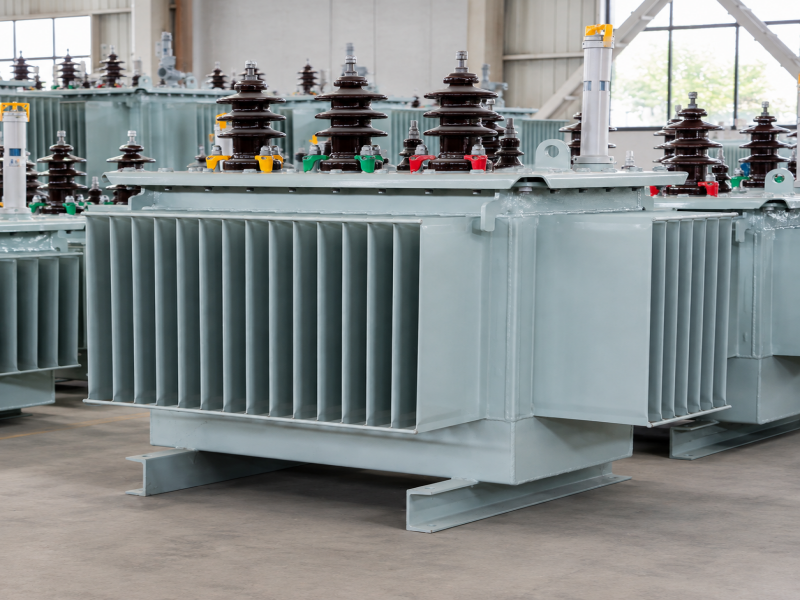

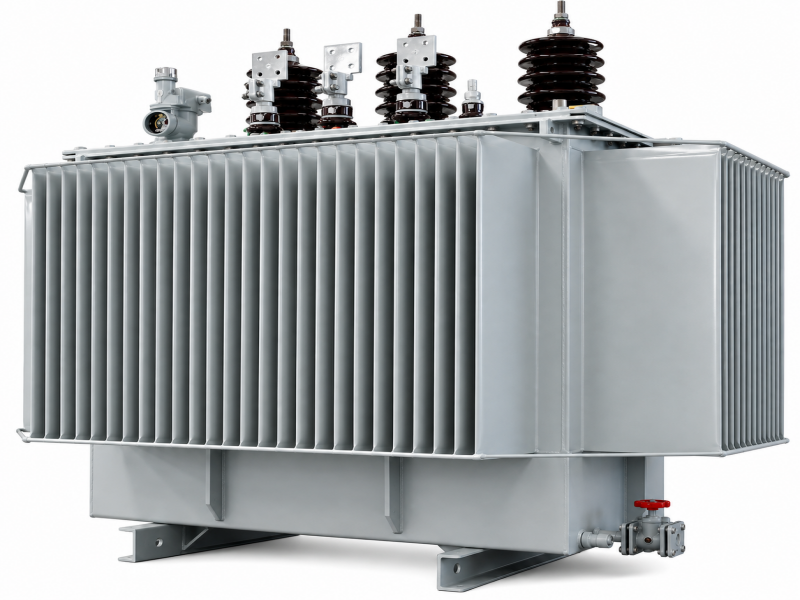

Renewable Energy Oil-immersed Three-phase Transformer

Renewable Energy Oil-immersed Three-phase Transformer

Renewable energy oil-immersed transformers are suitable for solar power plants, wind farms, energy storage stations, and large-scale renewable energy projects. They are used for voltage conversion between generation equipment and the power grid, offering strong heat dissipation, reliable operation, and stable performance for outdoor and high-capacity applications.
Contact Us

Products Center

Product Details

6kV/10kV

Capacity
(kVA)
6kV/10kV NEW ENERGY DEDICATED OIL IMMERSED TRANSFORMER
H.VL.VConnectionNo-load loss(kW)On-load loss(kW)Impedance
(%)
Level 1Level 2Level 3Level 1Level 2Level 3
5006.0~7.20.4~1.14Dyn11
YNd11
0.3850.4300.4803.9004.3305.4104.0~8.0
6300.4600.5100.5704.4604.9606.200
8000.5600.6300.7005.4006.0007.500
10000.6650.7450.8307.4158.24010.300
12500.7800.8700.9708.6409.60012.000
16000.9401.0501.17010.44011.60014.500
20001.0851.2251.36013.18014.64018.300

50010~120.4~1.14Dyn11
YNd11
0.3850.4300.4803.9004.3305.4104.0~8.0
6300.4600.5100.5704.4604.9606.200
8000.5600.6300.7005.4006.0007.500
10000.6650.7450.8307.4158.24010.300
12500.7800.8700.9708.6409.60012.000
16000.9401.0501.17010.44011.60014.500
20001.0851.2251.36013.18014.64018.300
25001.2801.4401.60015.27016.96021.200
30001.5471.7191.90916.79718.66423.330
31501.6061.7841.98217.97819.97624.970

35kV

Capacity
(kVA)
35kV NEW ENERGY DEDICATEDOIL IMMERSED  TRANSFORMER
H.VL.VConnectionNo-load loss(kW)On-load loss(kW)Impedance
(%)
Level 1Level 2Level 3Level 1Level 2Level 3
100035~38.50.4~1.14Dyn11
YNd11
0.60.80.910.410.410.96.0~14.0
12500.80.91.112.512.513.2
16000.91.11.314.914.915.8
20001.21.41.516.516.517.4
25001.41.71.817.617.619.6
30001.61.92.120.320.322.5
31501.72.02.220.720.723.0
40002.02.32.624.624.627.3
45002.22.63.027.127.130.1
50002.42.83.228.228.231.3
55002.63.03.530.330.333.6
63002.93.43.831.531.535.0
80004.04.75.234.634.638.1
100004.85.76.340.840.845.3
125005.66.57.250.750.756.3
