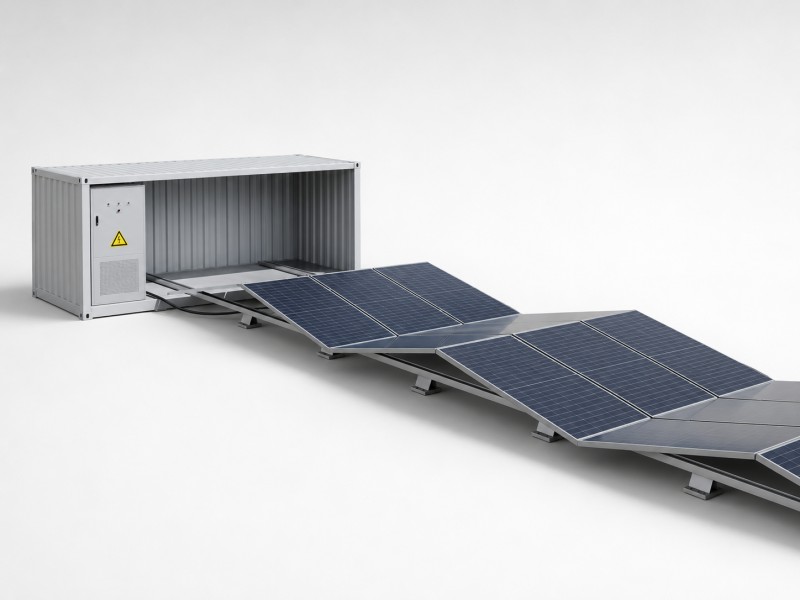

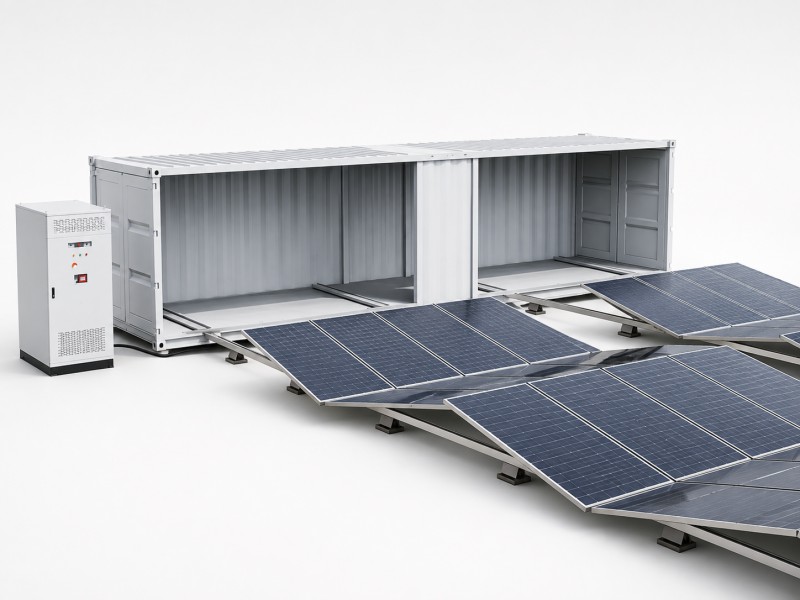

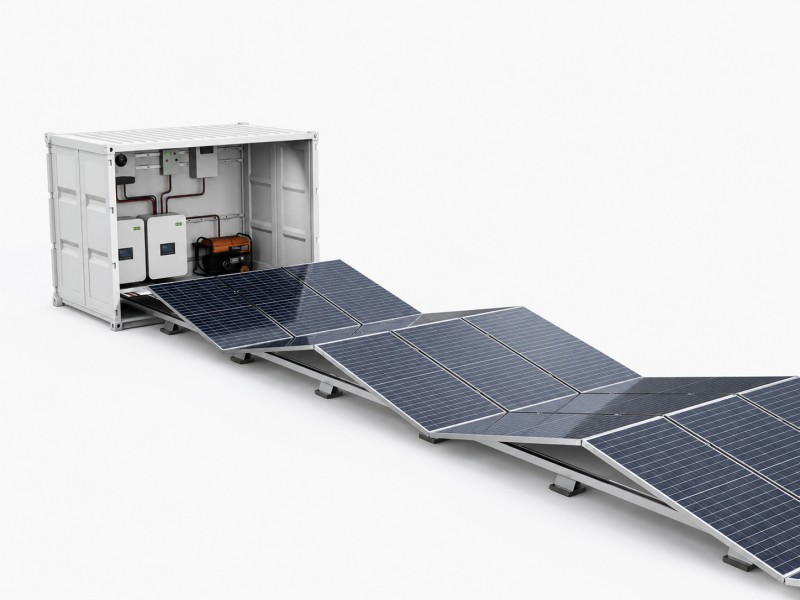

Foldable photovoltaic power generation cabin

Foldable photovoltaic power generation cabin

Contact Us

Products Center

Product Details


Minimalism

-High integration,Built-in Transportation Device,Time&Labor Saving.
-Modular Structure,Minimalism Design,Support Installation &Maintenance by Plug and Play .
-Base on the portable solution of standard 10/20/40 Cabinet,Convenient Transportation,Flexible Installation.
-Complete Machine Delivery,OOBE(Our Of Box Experience), Time&Labor Saving and Worry Free
-Support elastic extension of power&capacity,Satisfy demands entirely.

Safety

-High Tension Metal Structure,Fortress Grade Protection,ensure security of equipment .
-Accomplished Grounding System and coordination protection devices  of overload,over-voltage,current-leakage etc.,no place for electricity risk.

Intelligence

-Build-in intelligent control system,real-time optimize MPPT of PV panels and support remote monitoring.
-Break isolation of equipment ,connect conveniently with energy storage, generators etc.,accomplish intelligent panorama coordination of source,grid,load and storage.

Stability

-Industrial Level IP54 ,Waterproof&Dust-proof .
-Integrated and Intelligent Temperature Control system:refrigeration,heating, dehumidification and constant temperature&humidity.

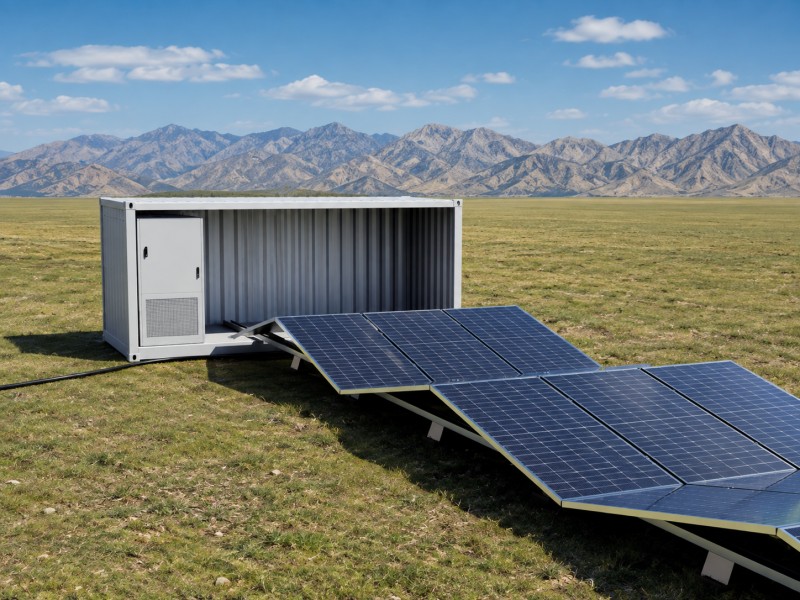

-Stable Performance in harsh nature conditions such as plateau and desert.

CategorySpecificationHLY-08GP-M-18K20HLY-10GP-M-30K40
PackagingPV Array Power (Pmax/kWp)1830.7

Total Weight (ton)5.56.5

Unfolded Size53×2.2×0.5m69×2.4×0.8m

Folded Size2.2×1.4×1.7m2.2×1.5×2.1m

Max Slope Restriction1%1%

DirectionAllAll

Time to be unfolded (min)5060

Time to be folded (min)3050

Quantity of Installers44
ContainerModel8GP10GP

External Dimensions (L×W×H/mm)2900×2200×22002991×2438×2591

Weight (ton)1.62.5
InverterModelSU-10kSU-10k

Inverter TypeOn-gridOn-grid

Quantity23

Max PV Power (Pmax/Wp)1300015600

Nominal AC Output Power (W)1000012000

Max AC Output Power (W)1100013200

Nominal AC Voltage (V)3L/N/PE 220/380V,230/400V3L/N/PE 220/380V,230/400V

AC Grid Frequency Range (Hz)50/6050/60

Max Output Current (A)16.7/15.920/19.1

Size (W×H×D/mm)422×702×281422×702×281

Weight (kg)33.633.6

Operating Temperature Range (°C)25–65°C25–65°C

CommunicationRS485/RS232/Wi-Fi/LANRS485/RS232/Wi-Fi/LAN
BracketMaterialCarbon Steel Square TubeCarbon Steel Square Tube

Single Bracket Dimension (mm)2190×1693×302190×1693×30

Quantity of Panels in One Bracket33

Angle of Unfolding Bracket (°)1515

Length of Unfolding Bracket (m)4848

Operating Area of Unfolding Brackets (㎡)105105

Quantity of Brackets3030
Storage SystemModule TypeLFP 10kWh/LVLFP 10kWh/LV

Rated Capacity200Ah200Ah

Rated Power10.24kWh10.24kWh

Rated Charge Power5kW5kW

Peak Power (Discharge Only)10kW, for 3s10kW, for 3s

Rated Voltage51.2V d.c.51.2V d.c.

Dimensions (W×H×D/mm)585×940×205585×940×205

Weight (kg)116.5116.5

CommunicationRS485RS485

Operating Temperature Range (°C)-20°C~+50°C, derating above +45°C-20°C~+50°C, derating above +45°C

Quantity of Battery (set)22
Diesel GeneratorModelKDE6700X3KDE6700X3

Rated Output5.5kVA5.5kVA

Peak Output6kVA6kVA

Rated Frequency50Hz50Hz

Rated Voltage203/400V203/400V

Rated Current7.9A7.9A

External Dimensions (L×W×H/mm)720×492×650720×492×650

Weight (kg)9595

Quantity (set)11
