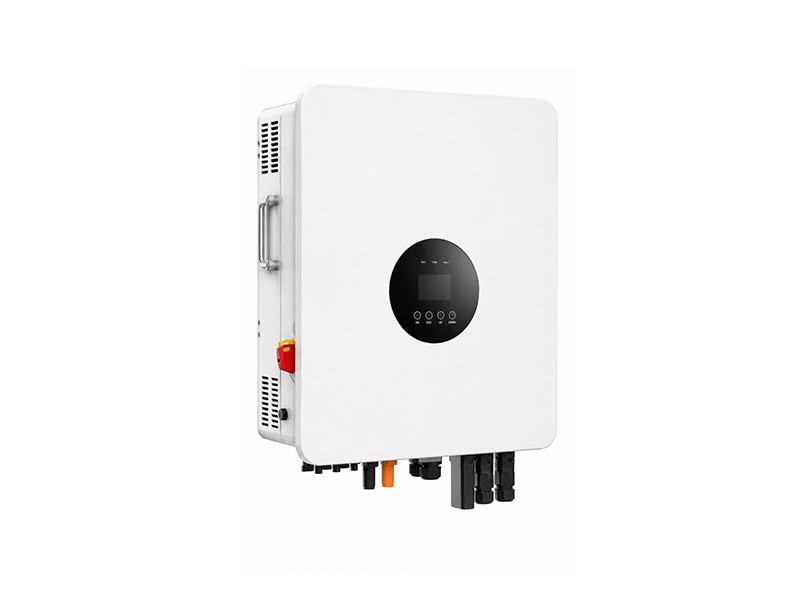

PV inverter

PV inverter

IP65 Design, Smart Cooling, Support Stackable Battery, Built-In BMS Communication, 10 Years Warranty
Contact Us

Products Center

Product Details

PV (DC Input)
ParameterHLEX-10KH3HLEX-12KH3HLEX-15KH3
Recommended max. PV input power22800W22800W22800W
Max. input voltage (Voc)1000V1000V1000V
MPPT operating voltage range200-850V (@200V start up)200-850V (@200V start up)200-850V (@300V start up)
Number of MPPT222
Max. number of input strings per MPPT1+21+21+2
Max. input current per MPPT15A+30A15A+30A15A+30A
Max. short-circuit current per MPPT19.5/40A19.5/40A19.5/40A

On-grid (Bidirection)

ParameterHLEX-10KH3HLEX-12KH3HLEX-15KH3
Rated input power10000W12000W15000W
Rated input current14.5A17.4A21.7A
Rated grid voltage400V (L1,L2,L3,N,PE) 50/60Hz400V (L1,L2,L3,N,PE) 50/60Hz400V (L1,L2,L3,N,PE) 50/60Hz
THDi<3%<3%<3%
Power factor-0.8~+0.8-0.8~+0.8-0.8~+0.8

Battery Parameters (Bidirection)

ParameterHLEX-10KH3HLEX-12KH3HLEX-15KH3
Battery typeSLA & LiFePO4 160-800VSLA & LiFePO4 160-800VSLA & LiFePO4 160-800V
Rated Battery Voltage400V400V400V
Max. charge/discharge current50A50A50A
BMS communication mode485; CAN485; CAN485; CAN

Back-up Output (AC Output)

ParameterHLEX-10KH3HLEX-12KH3HLEX-15KH3
Rated output power10000W / 10000VA12000W / 12000VA15000W / 15000VA
Rated output current14.5A17.4A21.7A
Rated output voltage400V (L1,L2,L3,N,PE) 50/60Hz400V (L1,L2,L3,N,PE) 50/40Hz400V (L1,L2,L3,N,PE) 50 Hz
Surge power11000VA13200VA16500VA
THDv (@ linear load)<3%<3%<3%
Switching time<10ms<10ms<10ms

Efficiency

ParameterHLEX-10KH3HLEX-12KH3HLEX-15KH3
Max. MPPT efficiency99.90%99.90%99.90%
Max. efficiency98.00%98.00%98.00%
European efficiency97.50%97.50%97.50%
Battery charging/discharging efficiency97.00%97.00%97.00%

General Parameters

ParameterHLEX-10KH3HLEX-12KH3HLEX-15KH3
Operating temperature range-20~60℃-20~60℃-20~60℃
Relative humidity range10~90%10~90%10~90%
Installation typeWall mountedWall mountedWall mounted
Cooling modeSmart coolingSmart coolingSmart cooling
CommunicationWi-Fi; R485; CAN; GPRSWi-Fi; RS485; CAN; GPRSWi-Fi; RS485; CAN; GPRRS
DisplayLCD; APPLCD; APPLCD; APP

Mechanical Specifications

ParameterHLEX-10KH3HLEX-12KH3HLEX-15KH3
Inverter dimensions (LWH) (mm)480*425*202480*425*202480*425*202
Net weight (kg)252627
Carton dimensions (LWH) (mm)637*545*326637*545*326637*545*326
Gross weight (kg)293031
Warranty5 Years Standard (10/15 Years Optional)5 Years Standard (10/15 Years Optional)5 Years Standard (10/15 Years Optional)
