Residential Energy Storage System

Residential Energy Storage System

Residential energy storage systems, including stackable and cabinet-type designs, provide flexible solutions for home power management and solar energy storage. They are suitable for villas, houses, apartments, garages, and small residential solar projects. Stackable systems support flexible capacity expansion, while cabinet-type systems offer an integrated and space-saving design. Both solutions can store surplus solar energy, support peak-load shifting, provide backup power during outages, reduce grid dependence, and improve household energy efficiency and independence.
Contact Us

Products Center

Product Details

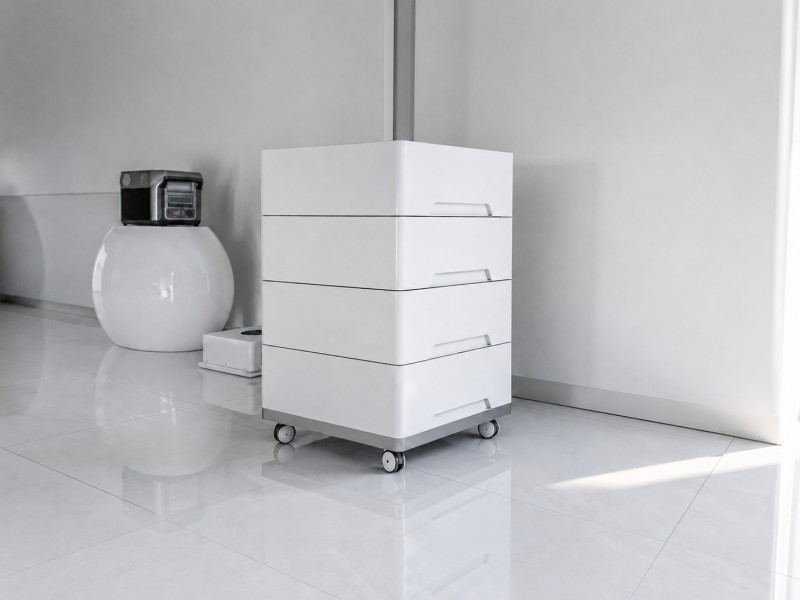

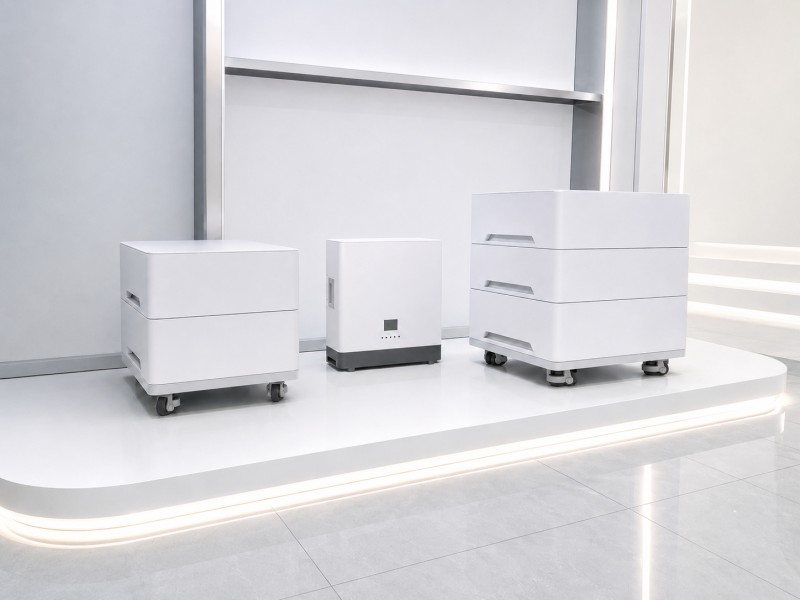

Stackable Home Energy Storage System:

ModelYF-DLS01601Z*K-V1.0
Product TypeLFP Battery System
NameSpecification(Typical Scheme)
5kWh System10kWh System15kWh System20kWh System25kWh System
System Energy5.12kWh10.24kWh15.36kWh20.48kWh25.6kWh
Rated Output Power*6kW12kWh
Rated Input/Output Voltage*220/230/240V(AC)
Cell TypeLFP 100Ah/3.2V
Battery Box Rated Voltage51.2V(DC)
Charging Cut-off Voltage0.5C
Discharging Cut-off Voltage58.4V
Rated Charge/Discharge Rate43.2V
Storage Temperature-30~50℃
Operating Temperature-20~40℃
Humidity≤95%, non-condensing
Protection FunctionOvercurrent, overcharge/discharge, overtemperature, short-circuit protection
Balancing FunctionYes
Dimensions (W×D×H)500*615*277mm500*615*457mm500*615*637mm500*615*817mm500*615*997mm
Weight60kg111.8kg163kg214kg266kg
Cycle Life≥8000 cycles@0.5C, 25±2℃, ≥70%EOL
CertificationsIEC 62619, IEC 61000-6-3, IEC 61000-6-1, UN38.3, MSDS

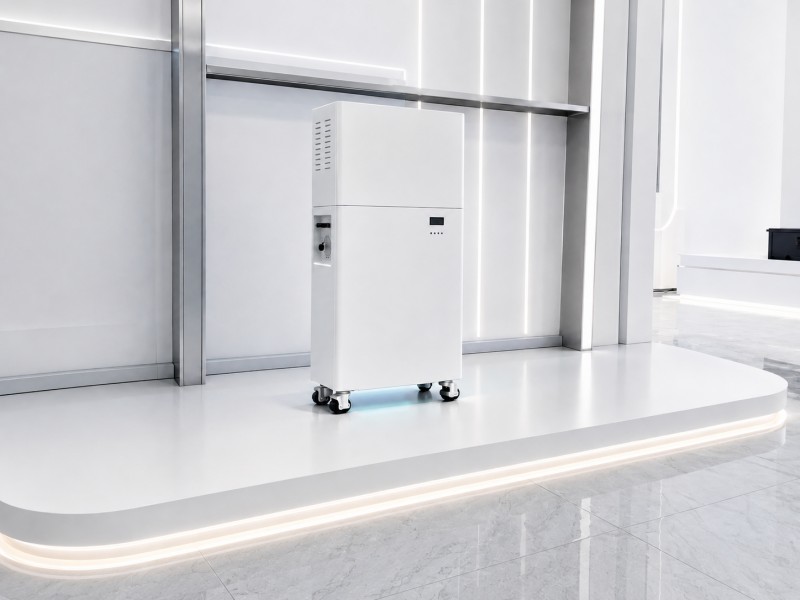

Floor‑standing Residential Energy Storage System:

ModelYF-DLS01601Z10.5KYF-DLS01601Z14.3KYF-DLS01601Z16K
Cell Type/CapacityLFP-205AhLFP-280AhLFP-314Ah
Rated Battery Energy10.5kWh14.3kWh16kWh
Nominal voltage51.2V
Charging Cut-off Voltage58.4V
Discharging Cut-off voltage43.2V
Communication methodsCAN/RS485/Bluetooth
Battery pack specification1P16S
Dimensions (W×D×H)570.4mm*328.8mm*734.6mm(excluding wheels)
WeightAbout 120kgAbout 140kgAbout 140kg
IP GradeIP54
Operating temperature-20~40℃
Storage temperature-30~50℃
Altitude<1000m
Humidity≤95%, non-condensing
Cabinet colorAs customer request
Cabinet material1.5mm Carbon steel
Cycle Life≥8000 cycles @0.5C, 25±2℃, ≥70%EOL
CertificationsIEC 62619, IEC 61000, UN38.3, MSDS


Products Center

FAQ

Q: Which countries and regions does your company's service cover?
A:

Our services cover key global regions, including Asia (China, Thailand, Malaysia, etc.), Europe (Germany, France, Italy, etc.), North America (United States, Canada), as well as South Africa, Australia, Brazil, and other regions. We can provide targeted service support according to customer needs.

Q: How long does it take for a customized service to provide an initial solution?
A:

Upon receiving a client's customized request, our professional team will communicate with them within 24 hours to clarify specific requirements (such as technical parameters, scenario adaptation, etc.). A preliminary customized solution can usually be provided within 3-5 business days. For complex requirements, we can negotiate to extend the timeframe and keep the progress in sync.

Q: What is the after-sales response time for overseas projects?
A:

The timeframe varies depending on the region: 24 hours for countries in neighboring Asia, 48 hours for Europe and North America, and 72 hours for other regions such as South Africa and Australia. Special and urgent projects can be expedited upon negotiation.

Q: What is the product warranty period, and what does the warranty cover?
A:

The warranty period for standard products is 1 year, and for core components it can be extended to 2 years (subject to the contract agreement). The warranty covers product quality issues, repairs and replacement of spare parts for malfunctions under normal use, but does not cover damage caused by human error or force majeure.
