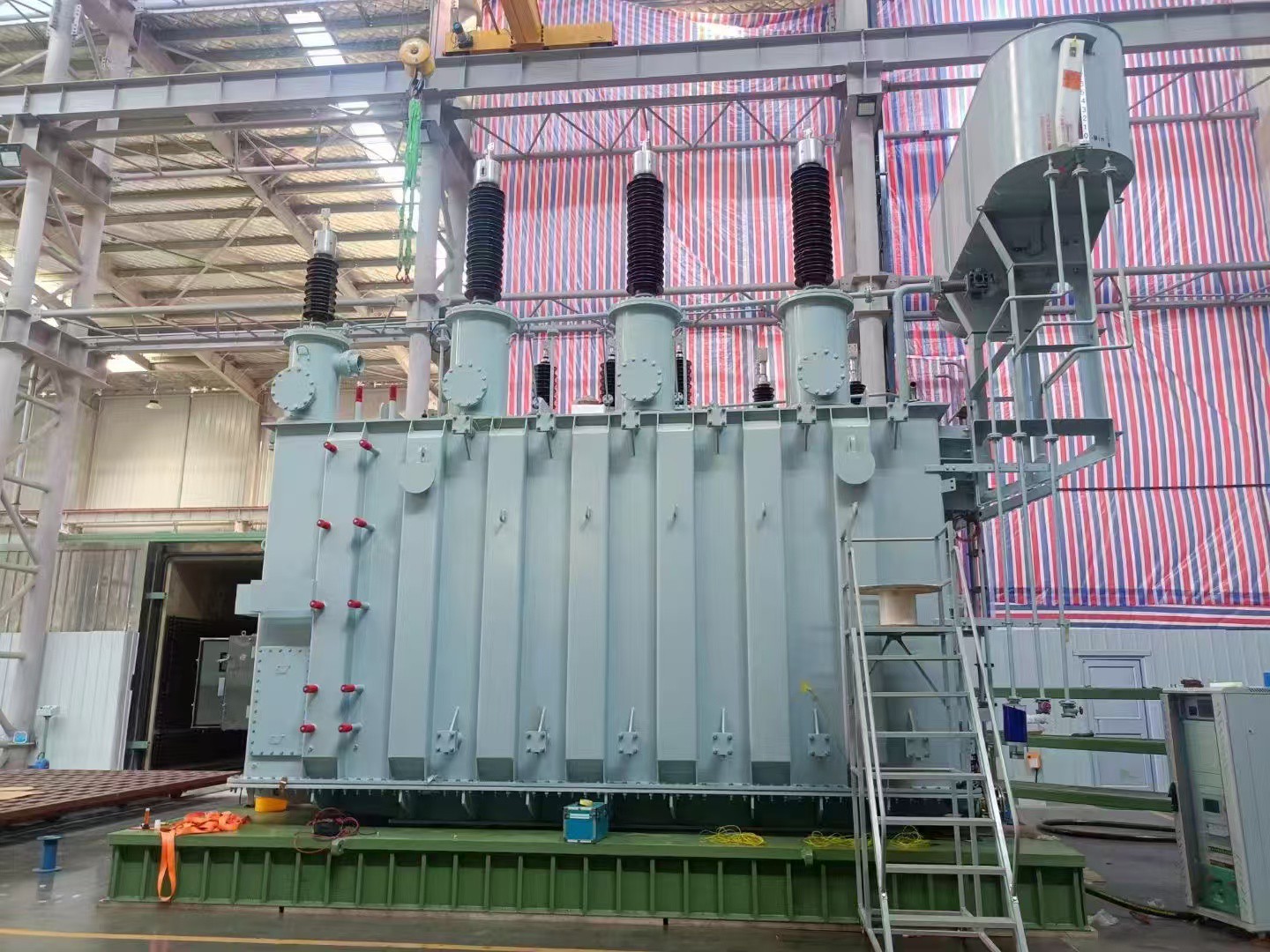

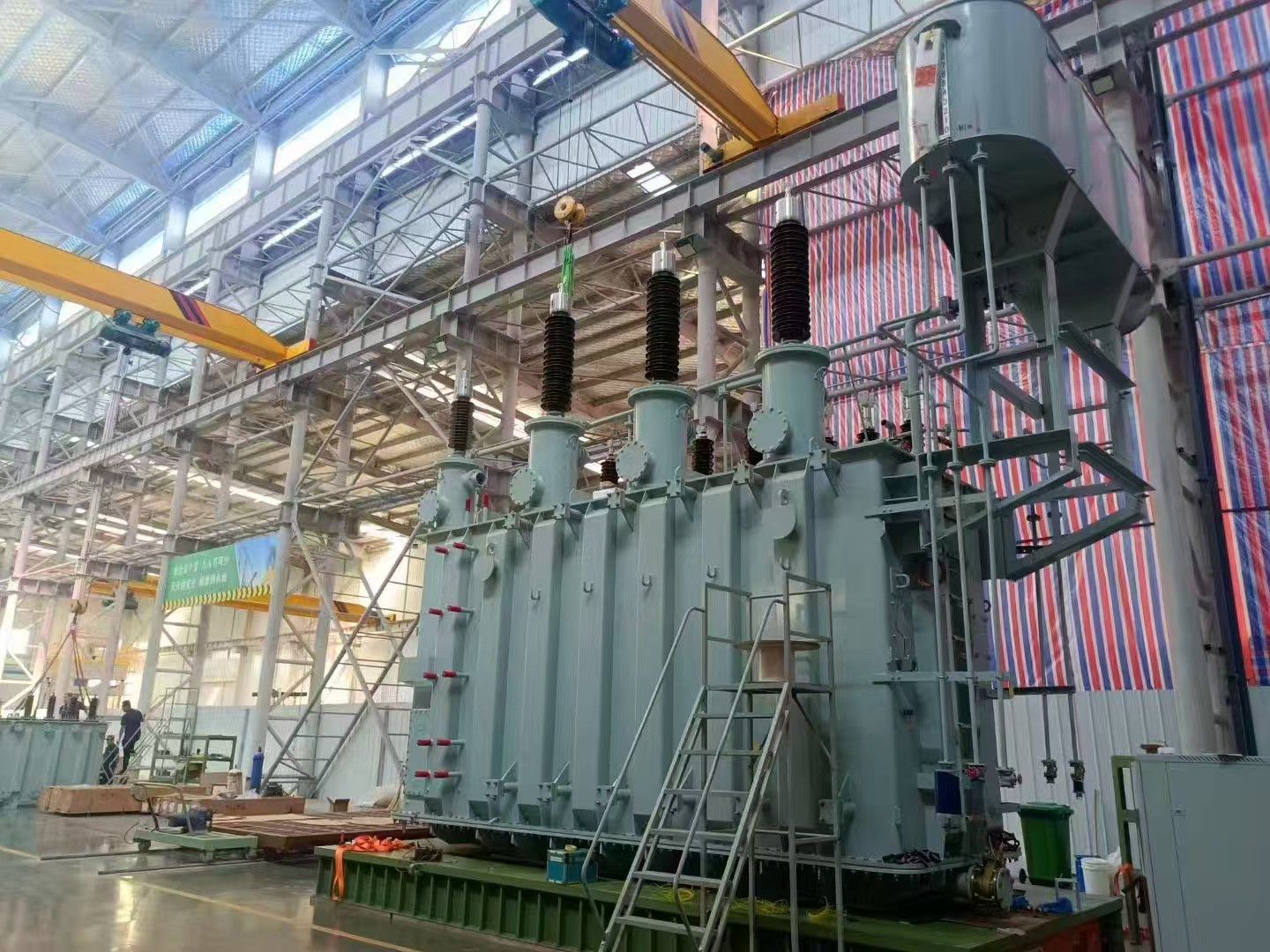

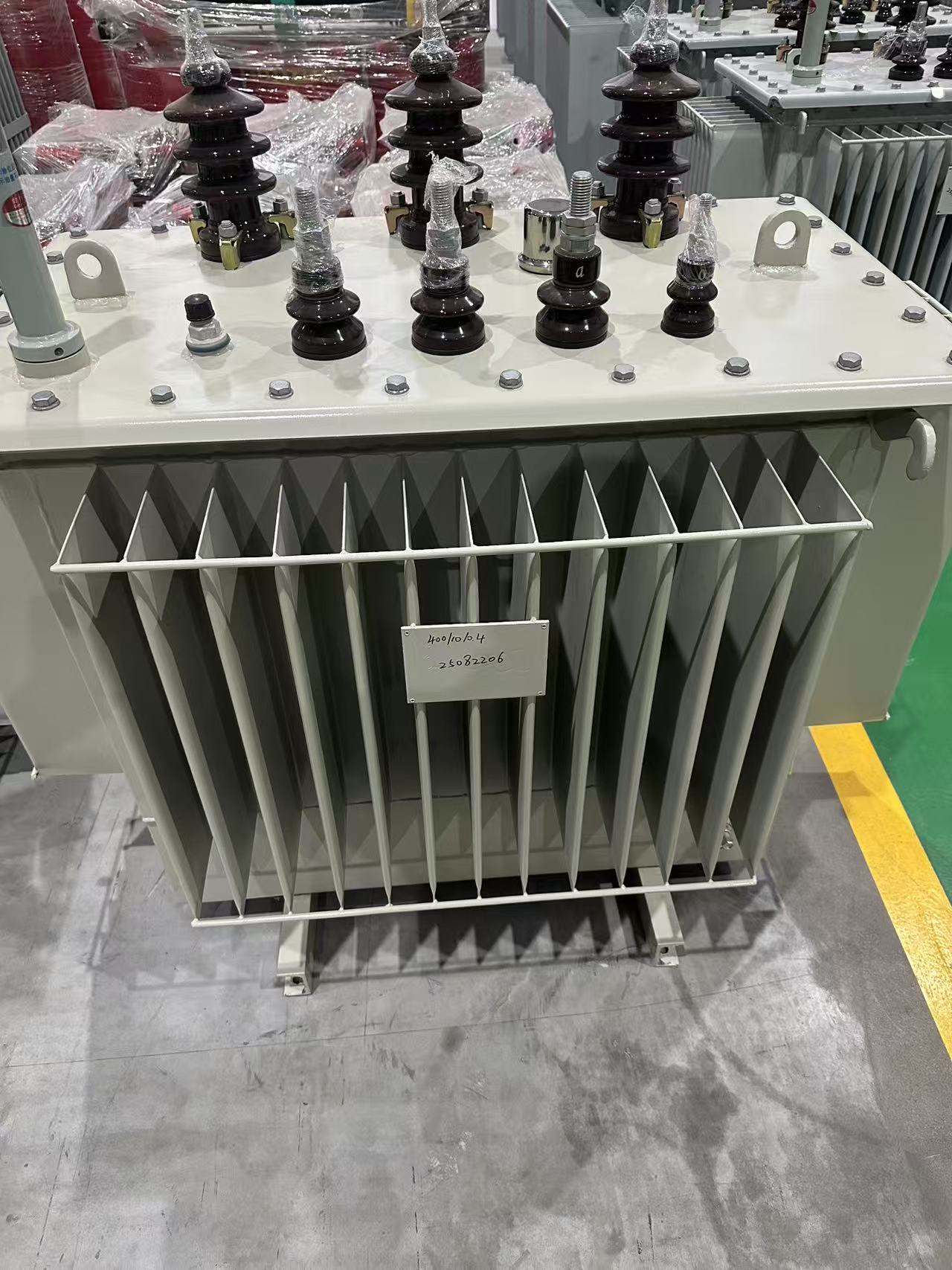

Oil Immersed Transformer Three Phase Power Transformer For Substation Industrial And Utility Applications

Oil Immersed Transformer Three Phase Power Transformer For Substation Industrial And Utility Applications

Oil-Immersed Transformers are widely used in substations, factories, power plants, commercial facilities, and utility networks for reliable voltage conversion and power distribution. The transformer oil provides effective insulation and cooling, helping maintain stable operation under continuous electrical loads.
Contact Us

Products Center

Product Details

Frequency50 Hz, 60 Hz
Input Voltage3 kV, 6 kV, 6.3 kV, 6.6 kV, 10 kV, 11 kV, 10.5 kV, 12.47 kV, 35 kV
Output Voltage110 V, 220 V, 380 V, 400 V, 440 V, 480 V, 10 kV
PhaseThree
Place of OriginShan Dong, China
Coil NumberMulti Winding, Two Windings, Three Windings
Coil StructureLayer Coil, Fully Sealed Construction, Shell-Type Coil
TypeOil-Immersed Transformer
ApplicationPower Distribution System Power Transformer
MaterialAluminum, Copper
Cooling MethodONAN
  • RoHS
  • PCT
  • ISO
  • CUL
  • UL
  • CCC
  • CE

Products Center

Packaging and Transportation

  • 包装运输图 (12)
  • 包装运输图 (11)
  • 包装运输图 (10)
  • 包装运输图 (9)
  • 包装运输图 (8)
  • 包装运输图 (6)
  • 包装运输图 (5)
  • 包装运输图 (4)
  • 包装运输图 (3)
  • 包装运输图 (2)
  • 包装运输图 (1)
  • 包装运输图 (14)
  • 包装运输图 (13)

Products Center

FAQ

Q: Which countries and regions does your company's service cover?
A:

Our services cover key global regions, including Asia (China, Thailand, Malaysia, etc.), Europe (Germany, France, Italy, etc.), North America (United States, Canada), as well as South Africa, Australia, Brazil, and other regions. We can provide targeted service support according to customer needs.

Q: How long does it take for a customized service to provide an initial solution?
A:

Upon receiving a client's customized request, our professional team will communicate with them within 24 hours to clarify specific requirements (such as technical parameters, scenario adaptation, etc.). A preliminary customized solution can usually be provided within 3-5 business days. For complex requirements, we can negotiate to extend the timeframe and keep the progress in sync.

Q: What is the after-sales response time for overseas projects?
A:

The timeframe varies depending on the region: 24 hours for countries in neighboring Asia, 48 hours for Europe and North America, and 72 hours for other regions such as South Africa and Australia. Special and urgent projects can be expedited upon negotiation.

Q: What is the product warranty period, and what does the warranty cover?
A:

The warranty period for standard products is 1 year, and for core components it can be extended to 2 years (subject to the contract agreement). The warranty covers product quality issues, repairs and replacement of spare parts for malfunctions under normal use, but does not cover damage caused by human error or force majeure.
